Product Details:
Payment & Shipping Terms:
|
POWER: | 7HP | COLOR: | RED |
---|---|---|---|
PACKAGE: | POLYWOODEN CASES | BRAND: | KIM DONG |
CONDITION: | NEW | MOQ: | 10SETS |
High Light: | 80KGS Small Marine Diesel Engines,7.7HP Small Marine Diesel Engines,7.7HP Water Cooling Diesel Engines |
Diesel Engine , Agricultural Machinery , Single Cylinder Engine , Small Diesel Engine

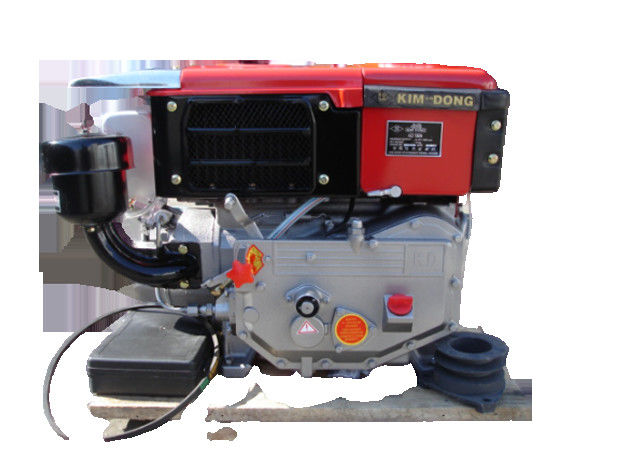

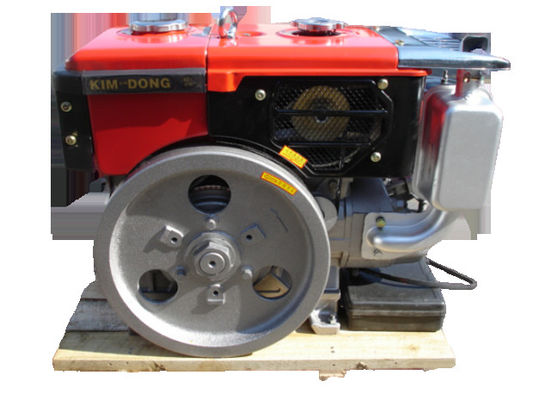

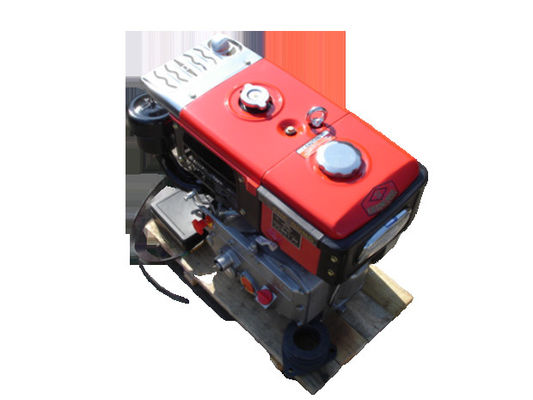

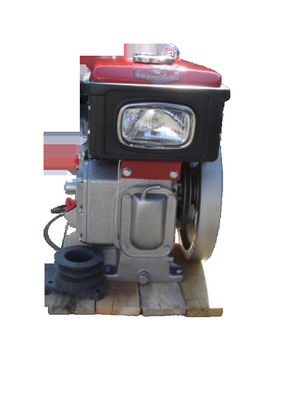

R180NL IS A WATER COOLING SINGLE CYLINDER DIESEL ENGINE. ITS DETAILED SPECIFICATION DATA AS BELOWS:
MODEL | R180NL |
TYPE | SINGLE CYLINDER,WATER-COOLED,HORIZONTAL,4-STROKE |
BORE X STROKE (MM) | 80x80 |
SPEED (RPM) | 2600 |
CONTINUOUS OUTPUT (KW/HP) | 5.15/7 |
MAXIMUM OUTPUT (KW/HP) | 5.67/7.7 |
COMBUSTION SYSTEM | SWIRL COMBUSTION CHAMBER |
SPECIFIC FUEL CONSUMPTION (G/KW.H) | 287 |
STARTING METHOD | HAND CRANK or ELECTRIC STARTER |
LUBRICATING OIL CAPACITY (L) | 2.5 |
WATER TANK CAPACITY (L) | 1.4 |
FUEL TANK CAPACITY (L) | 5 |
NET WEIGHT (KGS) | 80 |
GROSS WEIGHT (KGS) | 95 |
OVERALL DIMENSIONS (LXWXH:MM) | 640x380x580 |
SET/20" CONTAINER | 216 |
IT IS BROADLY APPLY FOR AGRICULTURAL MACHINERIES, SUCH AS RICE-MILLING MACHINE, WATER PUMP, GENERATOR SETS, CONSTRUCTION MACHINERIES ETC.
