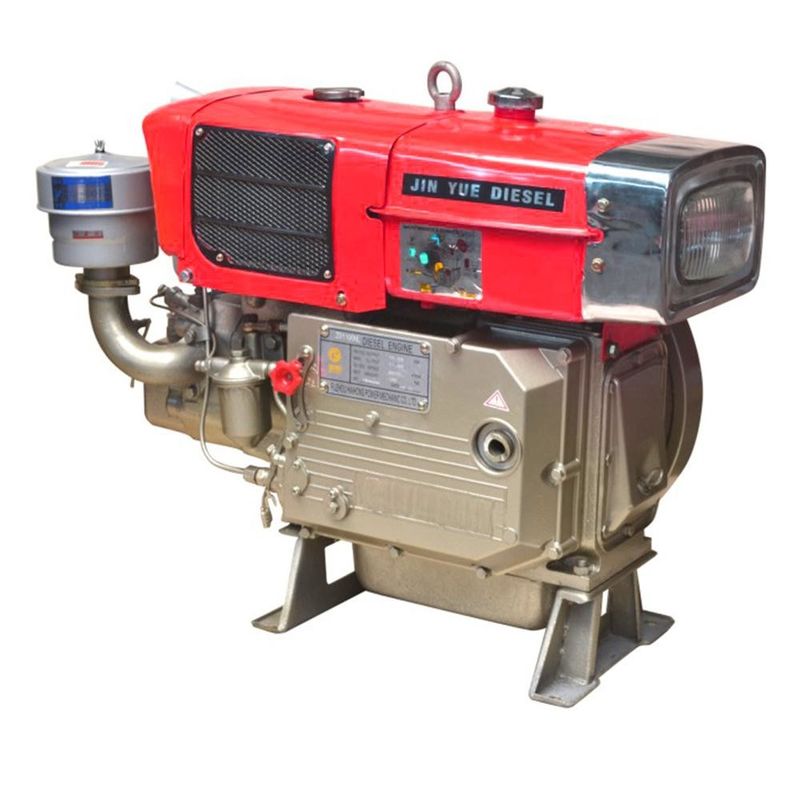

Single Cylinder 158KG 2200RPM 14.3HP Machine Diesel Engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| POWER: | 14.3HP | COLOR: | RED |
|---|---|---|---|
| PACKAGE: | POLYWOODEN CASES | STARTING METHOD: | HAND CRANK OR KEY STARTER |
| FUEL: | DIESEL | PLACE OF ORIGIN: | P.R.CHINA |
| High Light: | 14.3HP Machine Diesel Engine,2200RPM Machine Diesel Engine,158KG Machine Diesel Engine |
||
Machine Diesel Engine , Agriculture Machine , Water Cooling Engine , Farm machinery spare parts , 1 pillow block bearing
ZS1100N IS A WATER COOLING SINGLE CYLINDER DIESEL ENGINE.THE DETAILED SPECIFICATION IS AS FOLLOWING :
| MODEL | ZS1100N |
| TYPE | SINGLE CYLINDER,WATER CONDENSOR-COOLED,HORIZONTAL,4-STROKE |
| BORE X STROKE (MM) | 100x115 |
| SPEED (RPM) | 2200 |
| CONTINUOUS OUTPUT (KW/HP) | 10.53/14.3 |
| MAXIMUM OUTPUT (KW/HP) | 11.63/15.8 |
| COMBUSTION SYSTEM | DIRECT INJECTION |
| SPECIFIC FUEL CONSUMPTION (G/KW.H) | 262.5 |
| STARTING METHOD | HAND CRANK |
| LUBRICATING OIL CAPACITY (L) | 4 |
| WATER TANK CAPACITY (L) | 3.5 |
| FUEL TANK CAPACITY (L) | 12 |
| NET WEIGHT (KGS) | 158 |
| GROSS WEIGHT (KGS) | 168 |
| OVERALL DIMENSIONS (LXWXH:MM) | 920x440x750 |
| SET/20" CONTAINER | 96 |
