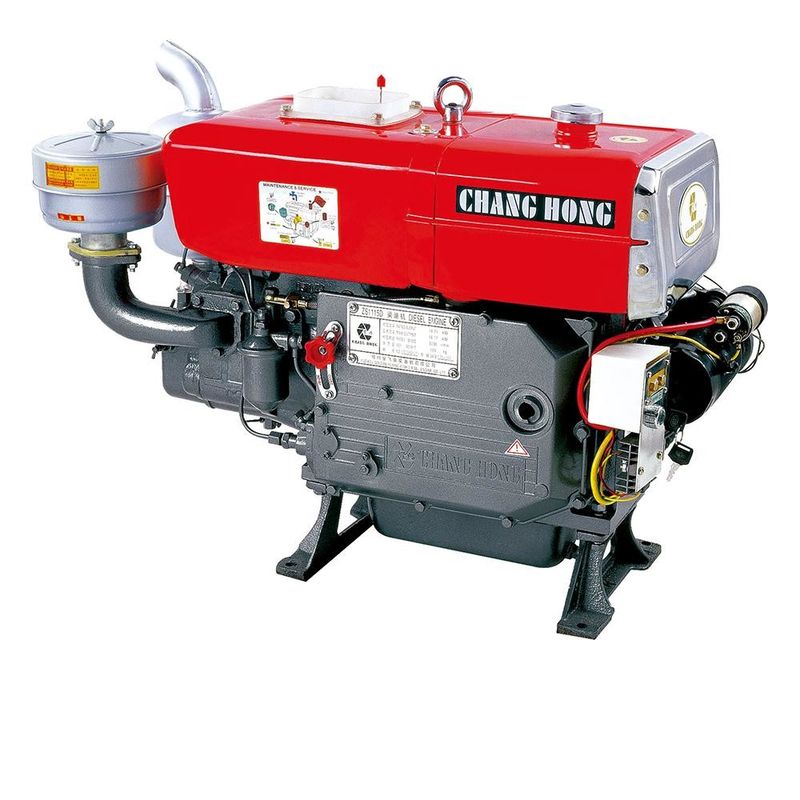

Horizontal ZS1115D 20HP Hand Crank Water Cooled diesel engines

Horizontal ZS1115D 20HP Hand Crank Water Cooled diesel engines

Horizontal  ZS1115D 20HP Hand Crank Water Cooled diesel engines
Horizontal  ZS1115D 20HP Hand Crank Water Cooled diesel engines

Large Image :  Horizontal ZS1115D 20HP Hand Crank Water Cooled diesel engines Get Best Price

Product Details:
Place of Origin: P.R.CHINA
Brand Name: CHANG HONG
Certification: /
Model Number: ZS1115D
Payment & Shipping Terms:
Minimum Order Quantity: 10SETS
Price: NEGOTIABLE
Packaging Details: 96 SETS PER 20" CONTAINER
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 5000SETS PER MONTH
Detailed Product Description
POWER: 20HP COLOR: RED
PACKAGE: POLYWOODEN CASES STARTING METHOD: HAND CRANK OR KEY STARTER
FUEL: DIESEL
High Light:

Horizontal 20HP Water Cooled Diesel Engines

,

ZS1115D Water Cooled Diesel Engine

,

Hand Crank Water Cooled Diesel Engines

Machine Diesel Engine , Agriculture Machine , Farm machinery spare parts , 1 pillow block bearing

  ZS1115D IS A WATER  COOLING SINGLE CYLINDER DIESEL ENGINE.THE DETAILED SPECIFICATION IS AS FOLLOWING :



MODEL ZS1115D
TYPE SINGLE CYLINDER,WATER-COOLED,HORIZONTAL,4-STROKE
BORE X STROKE (MM) 115x115
SPEED (RPM) 2200
CONTINUOUS OUTPUT (KW/HP) 14.71/20
MAXIMUM OUTPUT (KW/HP) 16.17/22
COMBUSTION SYSTEM DIRECT INJECTION
SPECIFIC FUEL CONSUMPTION (G/KW.H) 242.1
STARTING METHOD HAND CRANK
LUBRICATING OIL CAPACITY (L) 4
WATER TANK CAPACITY (L) 15
FUEL TANK CAPACITY (L) 12
NET WEIGHT (KGS) 190
GROSS WEIGHT (KGS) 210
OVERALL DIMENSIONS (LXWXH:MM) 920x440x750
SET/20" CONTAINER 96



Product introduction
Single cylinder diesel engine, which is classified according to the number of cylinders, has only one cylinder.
Single cylinder diesel engine is mainly used in agricultural machinery, construction machinery, automobile
industry, marine machinery, power industry and other fields.



 IT IS BROADLY APPLY FOR AGRICULTURAL MACHINERY, SUCH AS RICE-MILLING MACHINE, WATER PUMP, TRACTOR, GENERATOR SETS, TRUCK  ETC.



Horizontal  ZS1115D 20HP Hand Crank Water Cooled diesel engines 0

Startup mode
1) Hand start mode. Single cylinder diesel engine is usually started by hand, and the following steps are
taken when starting: 1) pulling the control handle up to the maximum throttle position and opening the fuel
tank switch; 2) turning the decompression handle to the "decompression" position; 3) when starting the
diesel engine with the start handle, the engine should stand on the left side of the machine in a horse-step
cubic manner, with the left hand holding the machine. The right hand holds the rocker, rotates the relief
handle to the relief position, then swings the crankshaft quickly, hears the injector emit a crisp sound of
fuel injection, suddenly puts down the relief handle, and the diesel engine can start.
2) Electric power start-up mode. Multi-cylinder diesel engines are usually started by electric power.
When starting, the following steps are usually taken: 1. Pull the governor handle to the middle speed
position and turn on the fuel tank switch; 2. Insert the ignition switch key into the ignition switch and
rotate to the "start" position, and the crankshaft of the diesel engine is rotated by the work of the electric
starter. Once activated, the key should be quickly loosened to "work" position.
