Horizontal 278.8 g/kwh 5.67KW Water Cooled Diesel Engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| POWER: | 7HP | COLOR: | RED |
|---|---|---|---|
| PACKAGE: | POLYWOODEN CASES | H.S CODE: | 8408909111 |
| High Light: | 278.8 g/kwh Water Cooled Diesel Engine,5.67KW Water Cooled Diesel Engine,278.8 g/kwh Diesel Engine |
||
Diesel Engine , Agricultural Machinery , Single Cylinder Engine , Small Diesel Engine

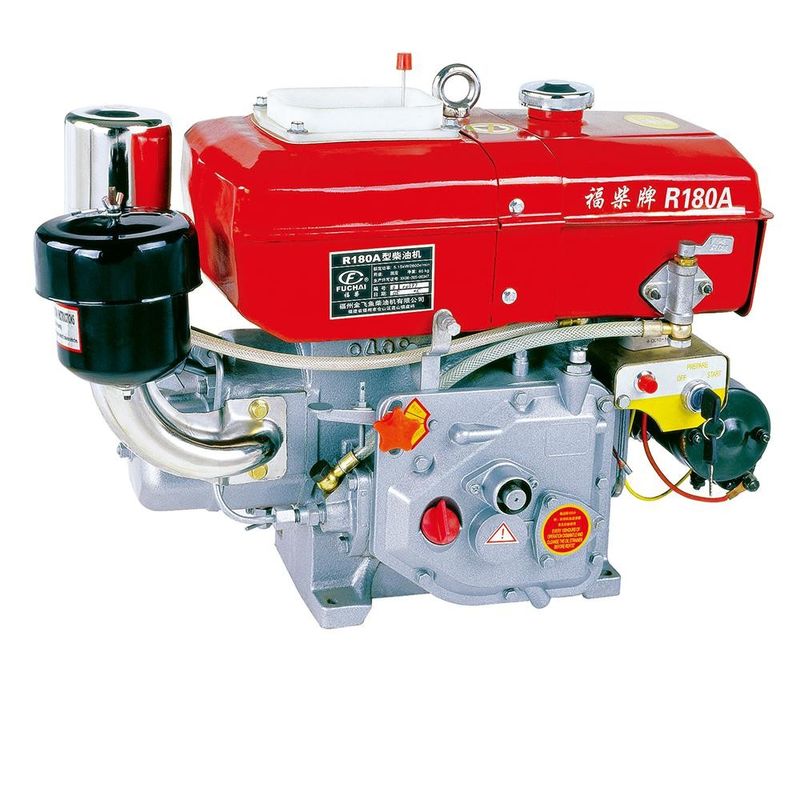

R180AD IS A WATER COOLING SINGLE CYLINDER DIESEL ENGINE, 4-STROKE, HORIZONTAL TYPE. ITS DETAILED SPECIFICATION DATA AS BELOWS:
| MODEL | R180AD |
| TYPE | SINGLE CYLINDER,WATER-COOLED,HORIZONTAL,4-STROKE |
| BORE X STROKE (MM) | 80x80 |
| SPEED (RPM) | 2600 |
| CONTINUOUS OUTPUT (KW/HP) | 5.15/7 |
| MAXIMUM OUTPUT (KW/HP) | 5.67/7.7 |
| COMBUSTION SYSTEM | SWIRL COMBUSTION CHAMBER |
| SPECIFIC FUEL CONSUMPTION (G/KW.H) | 278.8 |
| STARTING METHOD | ELECTRIC STARTER |
| LUBRICATING OIL CAPACITY (L) | 2.5 |
| WATER TANK CAPACITY (L) | 7.5 |
| FUEL TANK CAPACITY (L) | 6.5 |
| NET WEIGHT (KGS) | 75 |
| GROSS WEIGHT (KGS) | 95 |
| OVERALL DIMENSIONS (LXWXH:MM) | 640x380x580 |
| SET/20" CONTAINER | 204 |
Use for:
Welder, water pump, generator, compressor, river/ sea boat, farming machinery, tractor/ power tiller, rice huller and polisher, industrial machinery...
