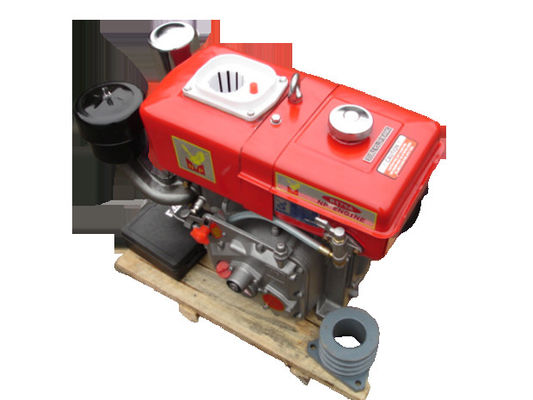

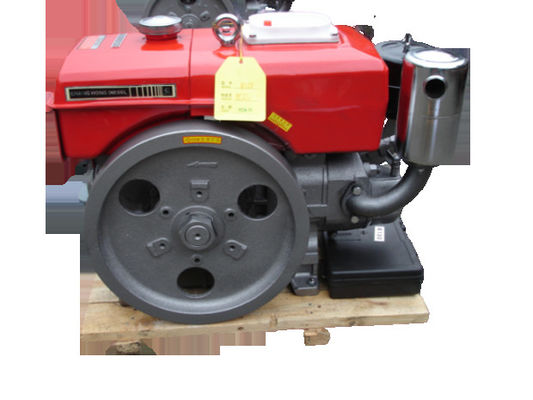

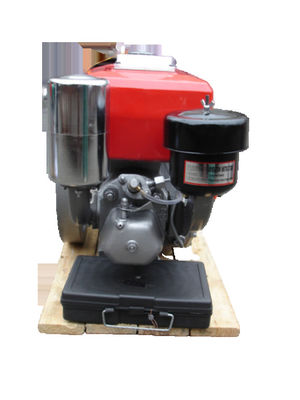

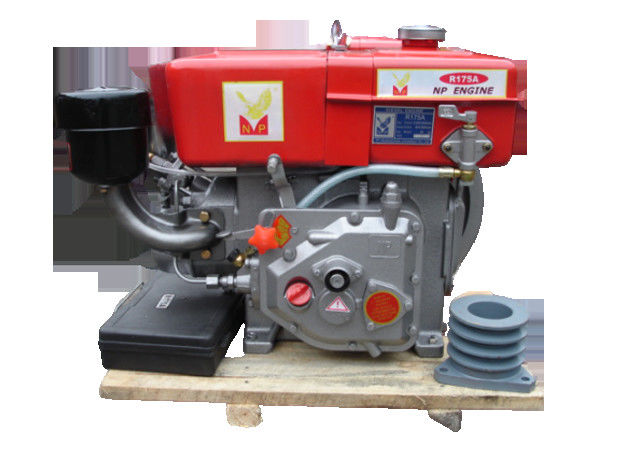

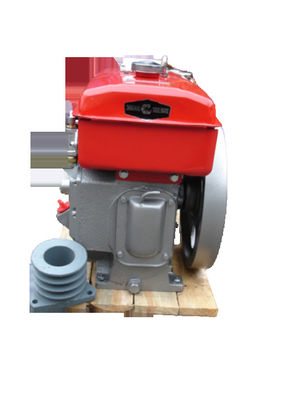

Hand Crank R175A 60KG 2600RPM Single Cylinder Diesel Engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| POWER: | 6HP | COLOR: | RED |
|---|---|---|---|
| PACKAGE: | POLYWOODEN CASES | NET WEIGHT: | 60KGS |
| H.S CODE: | 8408909111 | CONDITION: | NEW |
| High Light: | 60KG Single Cylinder Diesel Engine,R175A Single Cylinder Diesel Engine,2600RPM Single Cylinder Diesel Engine |
||
Single Cylinder Diesel Engine , Agriculture Machine , Farm machinery spare parts , 1 Pillow Block Bearing
R175A IS A WATER-COOLING SINGLE CYLINDER DIESEL ENGINE.THE DETAILED SPECIFICATION IS AS FOLLOWING :
| MODEL | R175A |
| TYPE | SINGLE CYLINDER,WATER-COOLED,HORIZONTAL,4-STROKE |
| BORE X STROKE (MM) | 75x80 |
| SPEED (RPM) | 2600 |
| CONTINUOUS OUTPUT (KW/HP) | 4.41/6 |
| MAXIMUM OUTPUT (KW/HP) | 4.85/6.6 |
| COMBUSTION SYSTEM | SWIRL COMBUSTION CHAMBER |
| SPECIFIC FUEL CONSUMPTION (G/KW.H) | 280.2 |
| STARTING METHOD | HAND CRANK |
| LUBRICATING OIL CAPACITY (L) | 2 |
| WATER TANK CAPACITY (L) | 6 |
| FUEL TANK CAPACITY (L) | 5 |
| NET WEIGHT (KGS) | 60 |
| GROSS WEIGHT (KGS) | 76 |
| OVERALL DIMENSIONS (LXWXH:MM) | 600x380x550 |
| SET/20" CONTAINER | 228 |
Use for:
Welder, water pump, generator, compressor, river/ sea boat, farming machinery, tractor/ power tiller, rice huller and polisher, industrial machinery...
