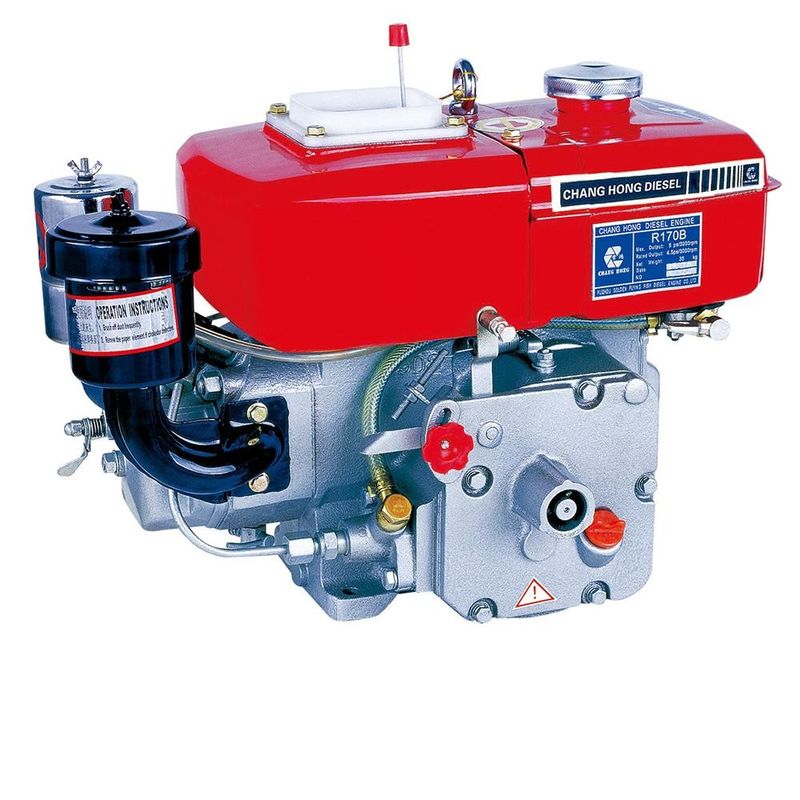

Agricultural R170B 30KG 4.4HP Single Cylinder Diesel Engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| POWER: | 4HP | COLOR: | RED |
|---|---|---|---|
| PACKAGE: | POLYWOODEN CASES | DISPLACEMENT: | 293.8 G/KW.H |
| PLACE OF ORIGIN: | P.R.CHINA | DELIVERY DATE: | 25-35 DAYS |
| High Light: | R170B Single Cylinder Diesel Engine,4.4HP Single Cylinder Diesel Engine,30KG Single Cylinder Diesel Engine |
||
Agriculture Machine , Diesel Engine , Water Cooling Engine , Farm Machinery Spare Parts , 1 Pillow Block Bearing
R170B IS A WATER-COOLED SINGLE CYLINDER DIESEL ENGINE.THE DETAILED SPECIFICATION IS AS FOLLOWING :
| MODEL | R170B |
| TYPE | SINGLE CYLINDER,WATER-COOLED,HORIZONTAL,4-STROKE |
| BORE X STROKE (MM) | 70x60 |
| SPEED (RPM) | 2600 |
| CONTINUOUS OUTPUT (KW/HP) | 2.94/4 |
| MAXIMUM OUTPUT (KW/HP) | 3.23/4.4 |
| COMBUSTION SYSTEM | SWIRL COMBUSTION CHAMBER |
| SPECIFIC FUEL CONSUMPTION (G/KW.H) | 293.8 |
| STARTING METHOD | HAND CRANK |
| LUBRICATING OIL CAPACITY (L) | 1.1 |
| WATER TANK CAPACITY (L) | 3.5 |
| FUEL TANK CAPACITY (L) | 2.9 |
| NET WEIGHT (KGS) | 30 |
| GROSS WEIGHT (KGS) | 39 |
| OVERALL DIMENSIONS (LXWXH:MM) | 495x320x392 |
| SET/20" CONTAINER | 485 |
Use for:
Welder, water pump, generator, compressor, river/ sea boat, farming machinery, tractor/ power tiller, rice huller and polisher, industrial machinery...
