70KG Power Tiller Diesel Engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| POWER: | 6HP | COLOR: | RED |
|---|---|---|---|
| PACKAGE: | POLYWOODEN CASES | DISPLACEMENT: | 289.7G/KW.H |
| START MODE: | HAND CRANK | FUEL: | DIESEL |
| High Light: | 70KG Power Tiller Diesel Engine,R175AN Power Tiller Diesel Engine |
||
Machine Diesel Engine , Agriculture Machine , Water Cooling Engine , Farm machinery spare parts , 1 pillow block bearing

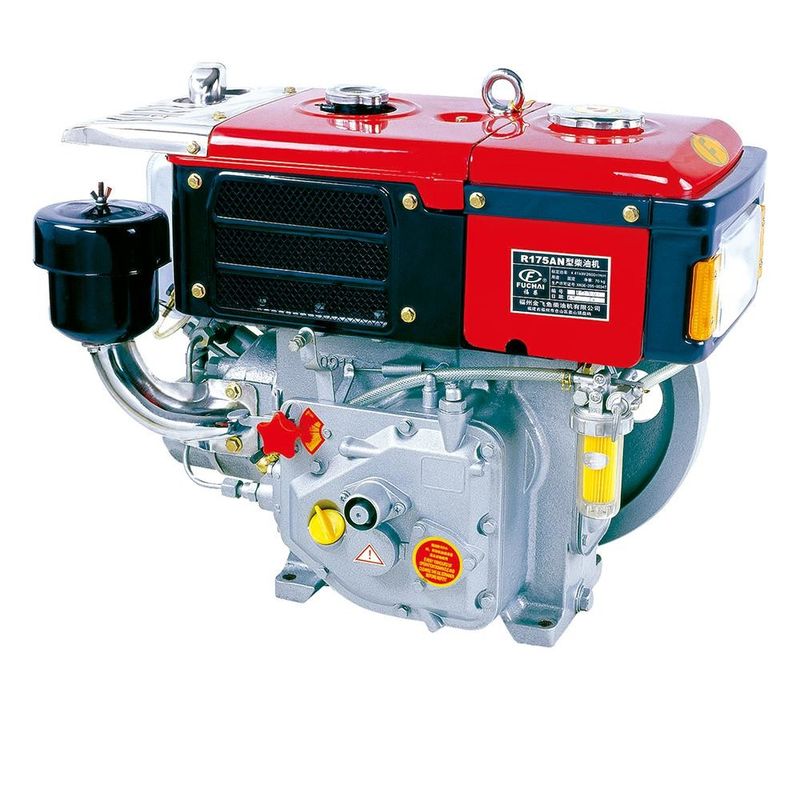

R175AN IS A WATER-COOLING SINGLE CYLINDER DIESEL ENGINE.THE DETAILED SPECIFICATION IS AS FOLLOWING :
| MODEL | R175AN |
| TYPE | SINGLE CYLINDER,WATER-COOLED,HORIZONTAL,4-STROKE |
| BORE X STROKE (MM) | 75x80 |
| SPEED (RPM) | 2600 |
| CONTINUOUS OUTPUT (KW/HP) | 4.41/6 |
| MAXIMUM OUTPUT (KW/HP) | 4.85/6.6 |
| COMBUSTION SYSTEM | PRECOMBUSTION CHAMBER |
| SPECIFIC FUEL CONSUMPTION (G/KW.H) | 289.7 |
| STARTING METHOD | HAND CRANK |
| LUBRICATING OIL CAPACITY (L) | 2 |
| WATER TANK CAPACITY (L) | 1.4 |
| FUEL TANK CAPACITY (L) | 4 |
| NET WEIGHT (KGS) | 70 |
| GROSS WEIGHT (KGS) | 87 |
| OVERALL DIMENSIONS (LXWXH:MM) | 620x380x565 |
| SET/20" CONTAINER | 216 |
Use for:
Welder, water pump, generator, compressor, river/ sea boat, farming machinery, tractor/ power tiller, rice huller and polisher, industrial machinery...
