2400RPM 10.3KW 14HP Single Cylinder Generator Set Diesel Engine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| POWER: | 14HP | COLOR: | ORANGE |
|---|---|---|---|
| DIMENSION: | 825*380*498 | 20%22CONTAINER LOAD: | 108SETS |
| High Light: | 10.3KW Generator Set Diesel Engine,14HP Single Cylinder Diesel Engine,2400RPM Generator Set Diesel Engine |
||
Generator Set Diesel Engine , Tractor Engine , Engine For Water Pump

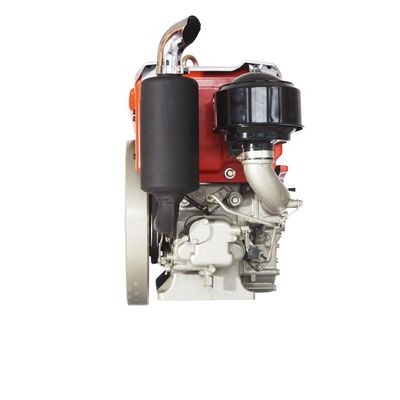

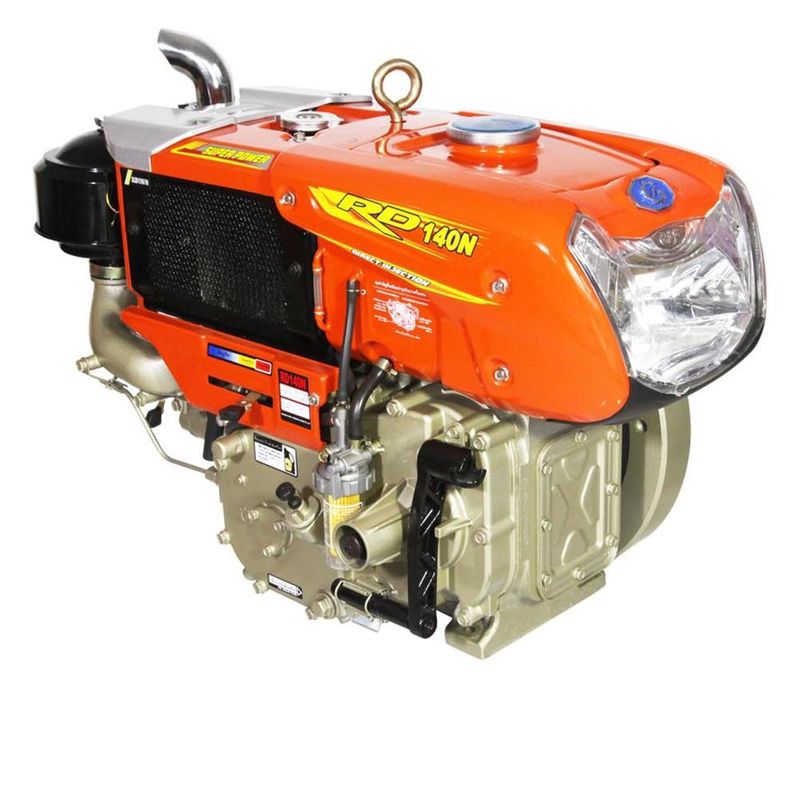

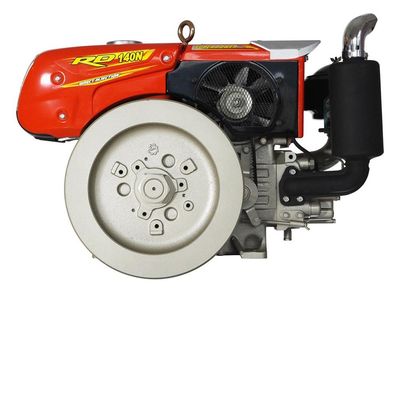

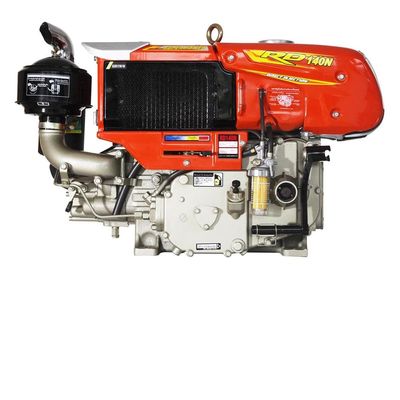

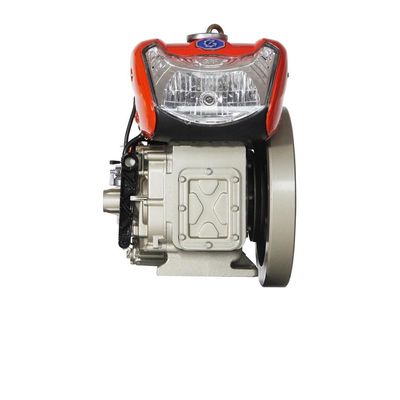

RD140N DIESEL ENGINE,CONDENSER WITH HEAD LAMP,THE MAXIMUM OUTPUT IS 10.3KW(14HP).
| MODEL | RD140N |
| TYPE | SINGLE CYLINDER,HORIZONTAL,4-STROKE,WATER COOLING |
| DISPLACEMENT (L) | 0.739 |
| BORE X STROKE (MM) | 98x98 |
| SPEED (RPM) | 2400 |
| CONTINUOUS OUTPUT (KW/HP) | 9.2/12.5 |
| MAXIMUM OUTPUT (KW/HP) | 10.3/14 |
| COMBUSTION SYSTEM | DIRECT INJECTION |
| SPECIFIC FUEL CONSUMPTION (G/KW.H) | 250 |
| STARTING METHOD | HAND CRANK |
| LUBRICATING OIL CAPACITY (L) | 3 |
| WATER TANK CAPACITY (L) | 2.3 |
| NET WEIGHT (KGS) | 115 |
| GROSS WEIGHT (KGS) | 125 |
| OVERALL DIMENSIONS (LXWXH:MM) | 825x380x498 |
| SET/20" CONTAINER | 102 |
Features:
1. Higher power, lower fuel consumption
2. Compact & light weight, easy to operate
3. Smooth running & durable
4. Optional electric start available
